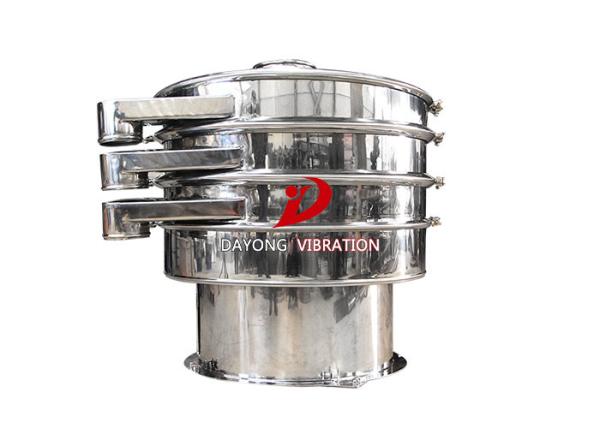

Full Stainless Steel Chilli Powder Vibrating Screen With 1000mm Diameter
Working Principle
Circular rotary vibrating screen machine is designed as a high-precision screening machinery. Rotary filter sieve price is composed of vertical motor, and eccentric weight installed at two ends. We can produce horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight. Diameter can be ranged from 600mm to 2000mm, with single or multiple screening decks (1-5 layers). Material can be divided into all carton steel, contact part stainless steel and all stainless steel.
Product Advantages
There are some characteristics about rotary vibrating screen for your information.
1. Automatic vibrating filter screen machine made in China can be used with single or multi-layer screen cloth.
2. Automatic discharge of materials, continuous operation.
3. No dead corner of parts, easy rinse thoroughly and disinfection.
4. High screening precision, high efficiency, suitable for any powder, particle and mucus materials.
5. New grid structure, long service life of screen mesh, only 3-5 minutes for screen replacement.
6. Small volume, less space occupation, easy to move, 360 degree adjustment of discharge opening.
Using Scope
1. Chemical industry: resin, coating, industrial medicine, cosmetic, coatings, Chinese medicine power.
2. Food industry: sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup.
3. Metal, metallurgy mining industry: aluminum powder, copper powder, ore alloy powder, welding rod powder.
4. Social pollution disposed: disposed oil, disposed water, disposed dye waste water, assistant detergent, and active carbon.
5. Paper making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
Technical Parameters
| Model | Power(kw) | Valid Diameter of screen(mm) | Volume(mm) | Layers |
DY-600-1S
DY-600-2S
DY-600-3S | 0.55kw | 550mm | 800*800*680
800*800*780
800*800*880 | 1
2
3 |
|
DY-800-1S
DY-800-2S
DY-800-3S | 0.75 kw | 750mm | 900*900*780
900*900*930
900*900*1080 | 1
2
3 |
DY-1000-1S
DY-1000-2S
DY-1000-3S | 1.5 kw | 950mm | 1160*1160*880
1160*1160*1030
1160*1160*1180 | 1
2
3 |
DY-1200-1S
DY-1200-2S
DY-1200-3S | 1.75 kw | 1150 mm | 1360*1360*980
1360*1360*1160
1360*1360*1360 | 1
2
3 |
DY-1500-1S
DY-1500-2S
DY-1500-3S | 2.2 kw | 1450mm | 1850*1850*1130
1850*1850*1330
1850*1850*1550 | 1
2
3 |
DY-1800-1S
DY-1800-2S
DY-1800-3S | 3 kw | 1750mm | 2200*2200*1360
2200*2200*1460
2200*2200*1680 | 1
2
3 |
Our Company
Xinxiang Dayong Vibration Equipment Co., Ltd, with its unremitting efforts in good product quality has high returns, obtained CE certification.
Product quality has always maintained the leading level in the domestic industry, access to national high-tech enterprises, National Internet and industrial integration of innovative pilot enterprises, bank credit rating AAA grade enterprise and other honors.
FAQ
Q:What is the real delivery time of your factory?
A:7 to 10 working days for general series products, meanwhile, customized products would need 20 days to 40 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of DH for most of our customers at home or abroad.However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.
Q: How do your after-sale service work if the product got damaged?
A: In the gurantee time 18 months, our general aftersale serve.
