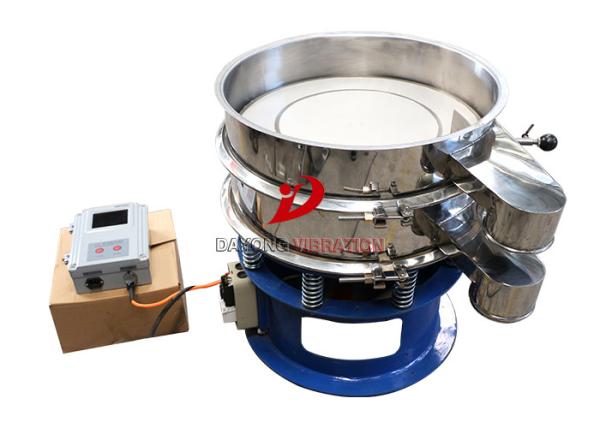

Industrial Power Ultrasonic Vibrating Screen For Waste Water Treatment
Product Advantages
By improving the low density of powder in the gravity settling down and sliding, improve the high density of metal in the front-end ports stranded or wedging and the adhesion effect of electrostatic powder, to improve the quality of screening and screening efficiency.In screening pass rate, usually more than the ordinary vibration sieve pass rate of 50% to 440%.
1. Less or no net-cleaning time.
2. No assistant objects bring pollution to the powder body e.g. rubber ball.
3. Keep the size of mesh and make the sieving precision stable.
4. Disassemble the adhesion objects and reduce the objects on the sieve.
5. High screening efficiency
Product Application
1. Chemical industry: pigment, washing power, micro power paint ,soda ash, citric acid.
2. Abrasive, ceramic industry: silicon carbide, emery, alumina, quartz, sand, mud.
3. Food industry: sugar, salt, alkali, milk power,soya-bean milk yeast,fruit juice, ect.
4. Paper-making industry: black and white fluid , liquid waste, paper fluid,wastewater recyling.
5. Metallurgical mining industry: oxide, electromagnetic material ,metal power ,electrpde power.
6. Waste water treament: garbage, human and animal excrement urine, residues,food waste water and waste water processing.
Working Principle
The ultrasonic vibrating sieve's function principle of ultrasonic vibrating screen is adding an ultrasonic energy transform device on the screen surface of 3-D vibrating separator and filter. This device can make the screen surface superpose ultra high frequency vibrational energy, so that it can keep clear of the net and achieve the ideal screen situation. Ultrasonic vibrating screen is usually used in screening superfine powder which the ordinary vibrating screen can not reach.
Techinical Parameters
| Model | Power | Sieving diameter | Effective area (m2) | Volume (mm) | Nets layer |
| DYC400-1S | 0.18 | 320mm | 0.0804 | 580*580*560 | 1 |
| DYC600-1S | 0.55 | 550mm | 0.2124 | 800*800*680 | 1 |
| DYC800-1S | 0.75 | 750mm | 0.4072 | 900*900*780 | 1 |
| DYC1000-1S | 1.5 | 950mm | 0.6221 | 1160*1160*880 | 1 |
| DYC1200-1S | 1.75 | 1150mm | 0.9331 | 1360*1360*980 | 1 |
Related Product
FAQ
Q: How to choose the suitable machine?
a. Customers who are familiar with technical performance and parameters can directly order.
Note: You had better send us the pictures you have ever used.
b. Customers who need us to choose the models, please follow the information, tell us:
1) Name and feature of the raw material?
2) Aim of using: get rid of impurity, filtration, grading
3) Handling capacity: kg /h, L/h
4) The raw material size: (mesh or mm)
5) How many final materials you want, or how many layer you need?
Note: You had better send us the relevant pictures about the details.
Q: How many kinds of material are supported?
a. All stainless steel (304, 316L)
b. All carbon steel Q235A
c. Contact part Stainless steel.
Q: Is it special requirement available?
a. Yes, the equipment could be designed according to customer's using aim or special requirements.
